Lanka Micro

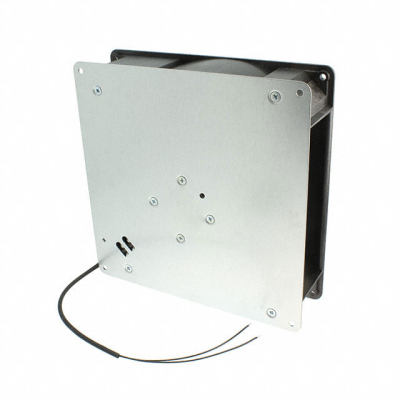

UF160DPB23-H1S2A
| Manufacturer: | Mechatronics Fan Group |
In Stock 15 pcs
|
|
|---|---|---|---|
| Datasheet: | UF160DPB23-H1S2A | ||
| Product Category: | AC Fans | Reference Price (In US Dollars) | 1pcs |
| Description: | BLOWER 220X56MM 230VAC | $72.91 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 2900 RPM
- Noise
- 65.0 dB(A)
- Width
- 56.20mm
- Series
- UF160DPB
- Weight
- 3.9 lbs (1.8 kg)
- Air Flow
- 126.0 CFM (3.53m³/min)
- Fan Type
- Blower
- Features
- Thermal Overload Protector (TOP)
- Approvals
- CE, cUL, TUV, UL
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 53.0W
- Voltage Range
- -
- Static Pressure
- 1.800 in H2O (448.4 Pa)
- Voltage - Rated
- 230VAC
- Lifetime @ Temp.
- -
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Square - 160mm L x 160mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.300A
- Operating Temperature
- -40 ~ 140°F (-40 ~ 60°C)
