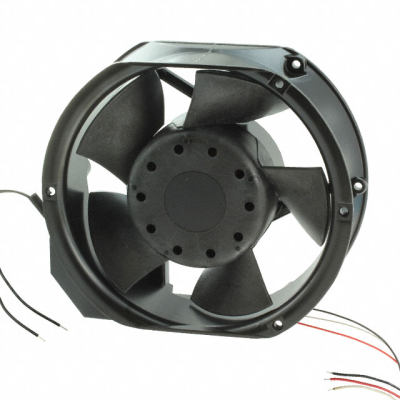

UF15KC12-BWHR-B1
| Manufacturer: | Mechatronics Fan Group |
In Stock 19 pcs
|
|
|---|---|---|---|
| Datasheet: | UF15KC12-BWHR-B1 | ||
| Product Category: | AC Fans | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN 172X150X55MM 115VAC TACH | $62.86 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3400 RPM
- Noise
- 60.0 dB(A)
- Width
- 55.00mm
- Series
- UF15KC
- Weight
- 2.3 lbs (1 kg)
- Air Flow
- 293.0 CFM (8.20m³/min)
- Fan Type
- Tubeaxial
- Features
- Permanent Split Capacitor Motor, Speed Sensor (Tach), Thermal Overload Protector (TOP)
- Approvals
- CE, cUL, TUV, UL
- Part Status
- Active
- Termination
- 2 Terminals
- Bearing Type
- Ball
- Power (Watts)
- 38.00W
- Voltage Range
- -
- Static Pressure
- 0.900 in H2O (224.2 Pa)
- Voltage - Rated
- 115VAC
- Lifetime @ Temp.
- -
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Aluminum
- Size / Dimension
- Rectangular/Rounded - 172mm L x 150mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.340A
- Operating Temperature
- -40 ~ 158°F (-40 ~ 70°C)
