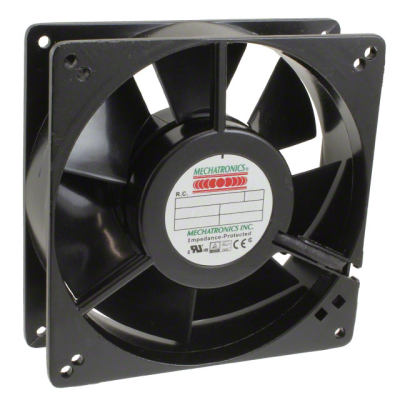

UF13A23-BTHR
| Manufacturer: | Mechatronics Fan Group |
In Stock 24 pcs
|
|
|---|---|---|---|
| Datasheet: | UF13A23-BTHR | ||
| Product Category: | AC Fans | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 127X38MM 230VAC | $16.41 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3000 RPM
- Noise
- 50.0 dB(A)
- Width
- 38.00mm
- Series
- UF13A
- Weight
- 1.2 lbs (544.3 g)
- Air Flow
- 120.0 CFM (3.36m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- CE, cUL, TUV, UL
- Part Status
- Active
- Termination
- 2 Terminals
- Bearing Type
- Ball
- Power (Watts)
- 15.00W
- Voltage Range
- -
- Static Pressure
- 0.140 in H2O (34.9 Pa)
- Voltage - Rated
- 230VAC
- Lifetime @ Temp.
- -
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Aluminum
- Size / Dimension
- Square - 127mm L x 127mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.090A
- Operating Temperature
- -40 ~ 158°F (-40 ~ 70°C)
