Lanka Micro

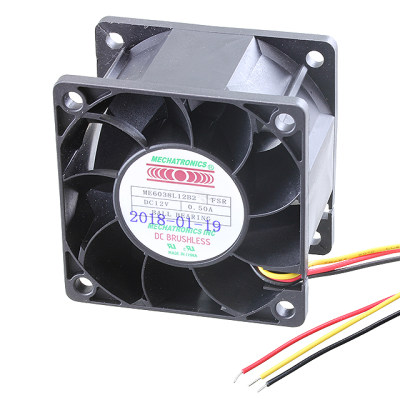

ME6038L12B2-FSR
| Manufacturer: | Mechatronics Fan Group |
In Stock 10 pcs
|
|
|---|---|---|---|
| Datasheet: | ME6038L12B2-FSR | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 60X38MM 12VDC WIRE | $14.3 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 6000 RPM
- Noise
- 48.5 dB(A)
- Width
- 38.00mm
- Series
- ME6038
- Weight
- 0.23 lb (104.33 g)
- Air Flow
- 35.5 CFM (0.994m³/min)
- Fan Type
- Tubeaxial
- Features
- Locked Rotor Sensor, Thermal Overload Protector (TOP)
- Approvals
- cUL, UL
- Part Status
- Active
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Voltage Range
- 7 ~ 13.2VDC
- Static Pressure
- 0.520 in H2O (129.5 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- -
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 60mm L x 60mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.500A
- Operating Temperature
- -
