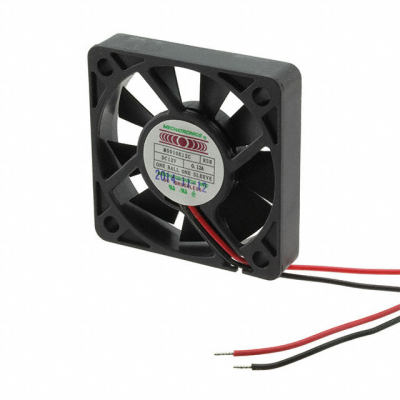

M5010E12C-RSR
| Manufacturer: | Mechatronics Fan Group |
In Stock 311 pcs
|
|
|---|---|---|---|
| Datasheet: | M5010E12C-RSR | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 50X10MM 12VDC | $5.57 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 6000 RPM
- Noise
- 28.0 dB(A)
- Width
- 10.00mm
- Series
- M5010
- Weight
- 0.046 lb (20.87 g)
- Air Flow
- 9.9 CFM (0.277m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- cUL, TUV, UL
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- 1 Ball/1 Sleeve
- Voltage Range
- 7 ~ 13.8VDC
- Static Pressure
- 0.140 in H2O (34.9 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- -
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 50mm L x 50mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.120A
- Operating Temperature
- -
