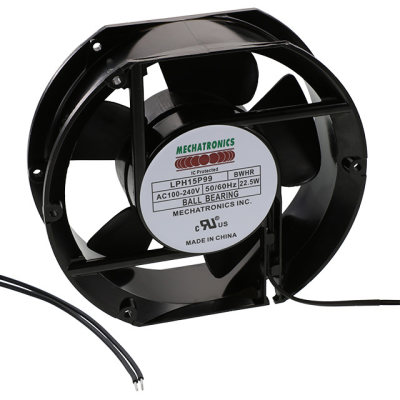

LPH15P99-BWHR
| Manufacturer: | Mechatronics Fan Group |
In Stock 450 pcs
|
|
|---|---|---|---|
| Datasheet: | LPH15P99-BWHR | ||
| Product Category: | AC Fans | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 172X51.5MM 100-240VAC | $47.09 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3200 RPM
- Noise
- 55.0 dB(A)
- Width
- 51.50mm
- Series
- LPH15P99
- Weight
- 1.6 lbs (725.7 g)
- Air Flow
- 228.0 CFM (6.38m³/min)
- Fan Type
- Tubeaxial
- Features
- Auto Restart, Electronic Commutation (EC)
- Approvals
- CE, cUL, TUV, UL
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 22.50W
- Voltage Range
- -
- Static Pressure
- 0.600 in H2O (149.5 Pa)
- Voltage - Rated
- 100 ~ 240VAC
- Lifetime @ Temp.
- -
- Material - Blade
- Plastic
- Material - Frame
- Aluminum
- Size / Dimension
- Rectangular/Rounded - 172mm L x 152mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.200A
- Operating Temperature
- -40 ~ 158°F (-40 ~ 70°C)
