Lanka Micro

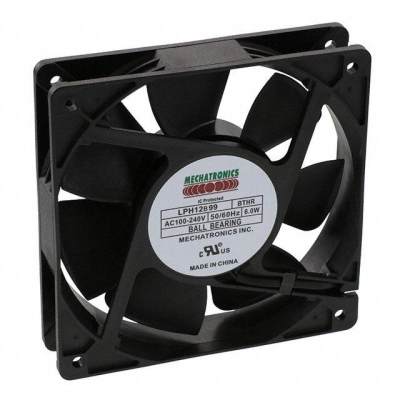

LPH12B99-BTHR
| Manufacturer: | Mechatronics Fan Group |
In Stock 788 pcs
|
|
|---|---|---|---|
| Datasheet: | LPH12B99-BTHR | ||
| Product Category: | AC Fans | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 120X25.5MM 100-240VAC | $21.52 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3000 RPM
- Noise
- 44.0 dB(A)
- Width
- 25.50mm
- Series
- LPH12B99
- Weight
- 0.325 lb (147.42 g)
- Air Flow
- 79.0 CFM (2.21m³/min)
- Fan Type
- Tubeaxial
- Features
- Auto Restart, Electronic Commutation (EC), Speed Sensor (Tach)
- Approvals
- -
- Part Status
- Active
- Termination
- 2 Terminals
- Bearing Type
- Ball
- Power (Watts)
- 6.00W
- Voltage Range
- -
- Static Pressure
- 0.180 in H2O (44.8 Pa)
- Voltage - Rated
- 100 ~ 240VAC
- Lifetime @ Temp.
- -
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Square - 120mm L x 120mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.100A
- Operating Temperature
- -40 ~ 158°F (-40 ~ 70°C)
