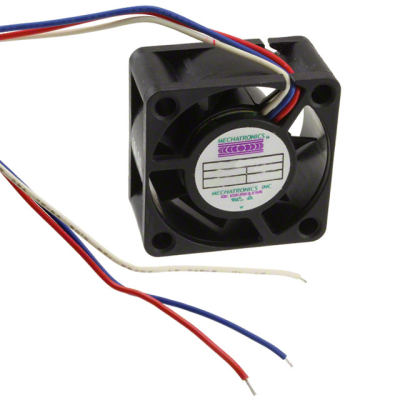

G4020H12B1-RSR-L18
| Manufacturer: | Mechatronics Fan Group |
In Stock 20 pcs
|
|
|---|---|---|---|
| Datasheet: | G4020H12B1-RSR-L18 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 40X20MM 12VDC WIRE | $9.53 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 7000 RPM
- Noise
- 29.0 dB(A)
- Width
- 20.00mm
- Series
- G4020
- Weight
- 0.062 lb (28.12 g)
- Air Flow
- 11.0 CFM (0.308m³/min)
- Fan Type
- Tubeaxial
- Features
- Speed Sensor (Tach), Thermal Overload Protector (TOP)
- Approvals
- CE, cUL, TUV, UL
- Part Status
- Active
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Voltage Range
- -
- Static Pressure
- 0.200 in H2O (49.8 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- -
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 40mm L x 40mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.130A
- Operating Temperature
- -
