Lanka Micro

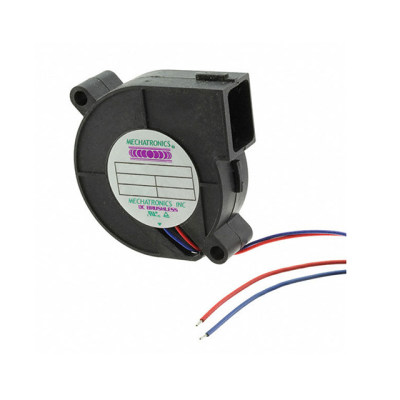

B5015E12B-BSR-CC
| Manufacturer: | Mechatronics Fan Group |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | B5015E12B-BSR-CC | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN BLOWER 51X15.7MM 12VDC WIRE | $10.04 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 6500 RPM
- Noise
- 45.0 dB(A)
- Width
- 15.70mm
- Series
- B5015
- Weight
- 0.055 lb (24.95 g)
- Air Flow
- 5.0 CFM (0.140m³/min)
- Fan Type
- Blower
- Features
- Conformal Coating, Thermal Overload Protector (TOP)
- Approvals
- CE, cUL, TUV, UL
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Voltage Range
- -
- Static Pressure
- 0.880 in H2O (219.2 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- -
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square/Rounded - 51mm L x 51mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.300A
- Operating Temperature
- -
