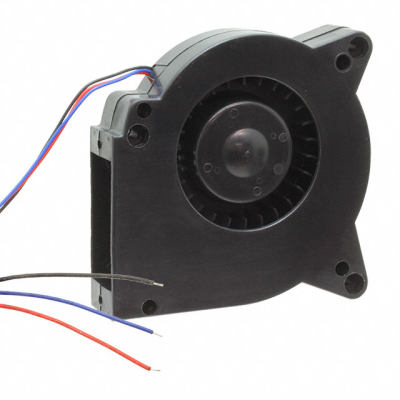

B1232M12B6-BSR
| Manufacturer: | Mechatronics Fan Group |
In Stock 1 pcs
|
|
|---|---|---|---|
| Datasheet: | B1232M12B6-BSR | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN BLOWER 120X32MM 12VDC WIRE | $20.89 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 2400 RPM
- Noise
- 46.0 dB(A)
- Width
- 32.00mm
- Series
- B1232
- Weight
- 0.706 lb (320.24 g)
- Air Flow
- 24.0 CFM (0.672m³/min)
- Fan Type
- Blower
- Features
- PWM Control, Thermal Overload Protector (TOP)
- Approvals
- CE, cUL, TUV, UL
- Part Status
- Active
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Voltage Range
- -
- Static Pressure
- 0.450 in H2O (112.1 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- -
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square/Rounded - 120mm L x 120mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.550A
- Operating Temperature
- -
