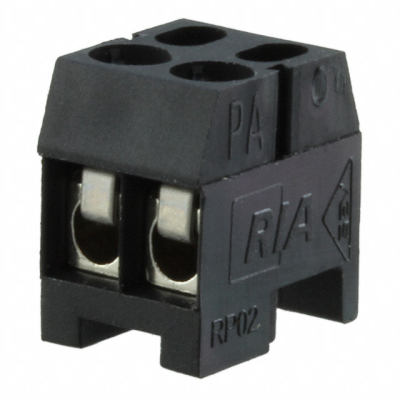

31166102
| Manufacturer: | METZ CONNECT USA Inc. |
In Stock 2727 pcs
|
|
|---|---|---|---|
| Datasheet: | 31166102 | ||
| Product Category: | Terminal Blocks - Headers, Plugs and Sockets | Reference Price (In US Dollars) | 1pcs |
| Description: | SCREW TYPE TERMINAL BLOCK, PLUG, | $1.44 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Plug for Unshrouded Header
- Color
- Black
- Pitch
- 0.138" (3.50mm)
- Series
- -
- Features
- -
- Packaging
- Bulk
- Screw Size
- M2
- Part Status
- Active
- Current - UL
- 8A
- Voltage - UL
- 125V
- Current - IEC
- -
- Mounting Type
- Free Hanging (In-Line)
- Torque - Screw
- 0.34 Nm (3.0 Lb-In)
- Plug Wire Entry
- 90°
- Contact Material
- Copper Alloy
- Number of Levels
- 1
- Insulation Height
- 0.394" (10.00mm)
- Termination Style
- Screw - Leaf Spring, Wire Guard
- Wire Strip Length
- -
- Header Orientation
- -
- Ingress Protection
- -
- Contact Tail Length
- -
- Dielectric Material
- Polyamide (PA66), Nylon 6/6
- Number of Positions
- 2
- Positions Per Level
- 2
- Contact Mating Finish
- -
- Operating Temperature
- -40°C ~ 105°C
- Wire Gauge or Range - AWG
- 16-28 AWG
- Wire Gauge or Range - mm²
- 0.08-0.75mm²
- Material Flammability Rating
- UL94 V-0
