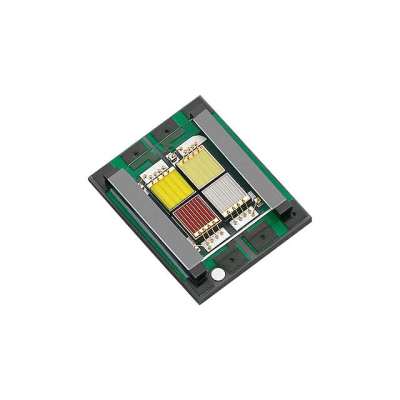

SBM-40-RGBW-N41-QA100
| Manufacturer: | Luminus Devices Inc. |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | SBM-40-RGBW-N41-QA100 | ||
| Product Category: | LED Lighting - Color | Reference Price (In US Dollars) | 1pcs |
| Description: | LED SBM40 RGBW 8SMD | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Color
- Red, Green, Blue, White (RGBW)
- Series
- SBM-40
- Packaging
- Digi-Reel®
- Wavelength
- 626nm Red, 527nm Green, 453nm Blue
- Part Status
- Obsolete
- Current - Max
- 2A Red, 2A Green, 2A Blue, 2A White
- Mounting Type
- Surface Mount
- Viewing Angle
- -
- Current - Test
- 700mA Red, 700mA Green, 700mA Blue, 700mA White
- Package / Case
- 2318 (5847 Metric)
- Size / Dimension
- 0.226" L x 0.184" W (5.75mm x 4.68mm)
- Temperature - Test
- 25°C
- Height - Seated (Max)
- 0.050" (1.26mm)
- Supplier Device Package
- SMD
- Lumens/Watt @ Current - Test
- 48 lm/W Red, 53 lm/W Green, 76 lm/W White
- Voltage - Forward (Vf) (Typ)
- 2.5V Red, 4.5V Green, 3.4V Blue, 3.4V White
- Thermal Resistance of Package
- 5°C/W
- Flux @ Current/Temperature - Test
- 84lm Red, 168lm Green, 765mW Blue, 182lm White
