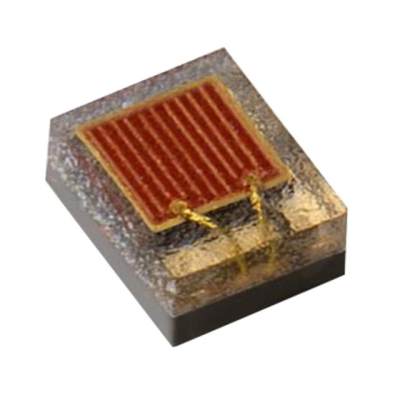

LXZ1-PA01

Product Parameter

Color

Red

Series

LUXEON Z

Packaging

Digi-Reel®

Wavelength

660nm (650nm ~ 670nm)

Part Status

Active

Current - Max

700mA

Mounting Type

Surface Mount

Viewing Angle

145°

Current - Test

500mA

Package / Case

0705 (1713 Metric)

Size / Dimension

0.067" L x 0.051" W (1.70mm x 1.30mm)

Temperature - Test

25°C

Height - Seated (Max)

0.026" (0.66mm)

Supplier Device Package

SMD

Lumens/Watt @ Current - Test

-

Voltage - Forward (Vf) (Typ)

2.2V

Thermal Resistance of Package

8°C/W

Flux @ Current/Temperature - Test

350mW (300mW ~ 400mW)
