SML-LX2723UWC-TR
| Manufacturer: | Lumex Opto/Components Inc. |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | SML-LX2723UWC-TR | ||
| Product Category: | LED Lighting - White | Reference Price (In US Dollars) | 1pcs |
| Description: | LED TITANBRITE 2SMD | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Color
- White
- Series
- TitanBrite™
- CCT (K)
- -
- Packaging
- Cut Tape (CT)
- Part Status
- Obsolete
- Current - Max
- 350mA
- Mounting Type
- Surface Mount
- Viewing Angle
- 120°
- Current - Test
- 350mA
- Package / Case
- 2-SMD, Gull Wing Exposed Pad

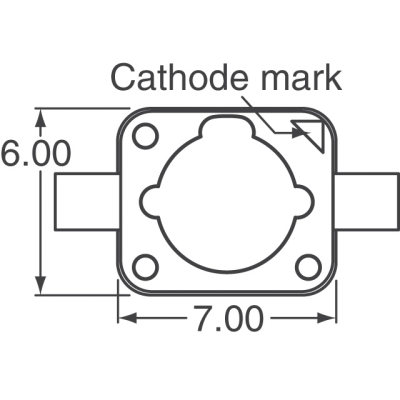

- Size / Dimension
- 0.276" L x 0.236" W (7.00mm x 6.00mm)
- Height - Seated (Max)
- 0.063" (1.60mm)
- Supplier Device Package
- SMD
- CRI (Color Rendering Index)
- -
- Flux @ 25°C, Current - Test
- 31lm (23lm ~ 39lm)
- Flux @ 85°C, Current - Test
- -
- Lumens/Watt @ Current - Test
- 28 lm/W
- Voltage - Forward (Vf) (Typ)
- 3.2V
- Thermal Resistance of Package
- -
