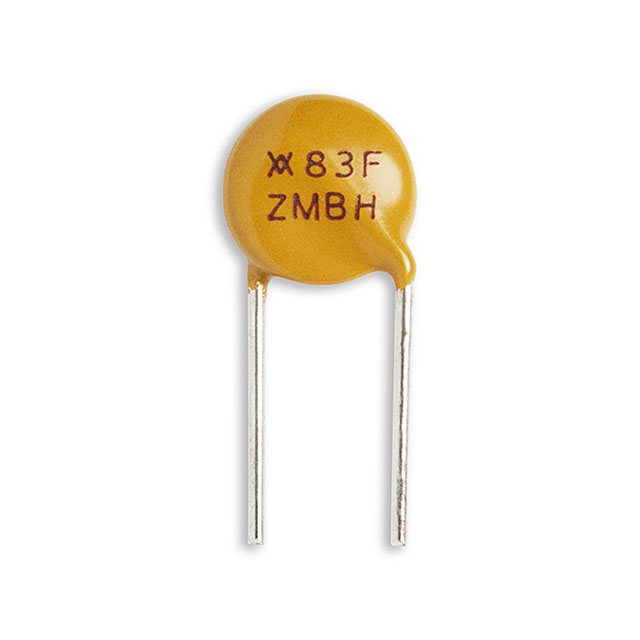

TRF250-183S
| Manufacturer: | Littelfuse Inc. |
In Stock 1980 pcs
|
|
|---|---|---|---|
| Datasheet: | TRF250-183S | ||
| Product Category: | PTC Resettable Fuses | Reference Price (In US Dollars) | 1pcs |
| Description: | PTC RESET FUSE 100V 183MA RADIAL | $0.71 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Polymeric
- Series
- PolySwitch®, TRF250
- Ratings
- -
- Approvals
- CSA, TUV, UL
- Packaging
- Bulk
- Part Status
- Active
- Lead Spacing
- 0.197" (5.00mm)
- Time to Trip
- 1.8s
- Current - Max
- 10A
- Mounting Type
- Through Hole
- Voltage - Max
- 100V (250V Int)
- Package / Case
- Radial, Disc
- Thickness (Max)
- -
- Size / Dimension
- 0.295" Dia x 0.150" T (7.50mm x 3.80mm)
- Current - Trip (It)
- 685mA
- Height - Seated (Max)
- 0.374" (9.50mm)
- Operating Temperature
- -40°C ~ 85°C
- Current - Hold (Ih) (Max)
- 183mA
- Resistance - Initial (Ri) (Min)
- 800 mOhms
- Resistance - Post Trip (R1) (Max)
- 3.4 Ohms
