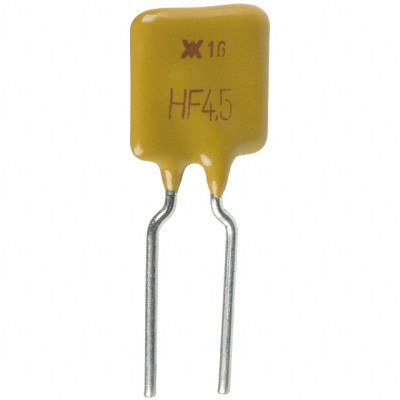

RHEF450

Product Parameter

Type

Polymeric

Series

PolySwitch®, RHEF

Ratings

-

Approvals

CSA, TUV, UL

Packaging

Bulk

Part Status

Discontinued at Digi-Key

Lead Spacing

0.199" (5.05mm)

Time to Trip

3s

Current - Max

100A

Mounting Type

Through Hole

Voltage - Max

16V

Package / Case

Radial, Disc

Thickness (Max)

-

Size / Dimension

0.409" L x 0.118" W (10.40mm x 3.00mm)

Current - Trip (It)

7.8A

Height - Seated (Max)

0.614" (15.60mm)

Operating Temperature

-40°C ~ 125°C

Current - Hold (Ih) (Max)

4.5A

Resistance - Initial (Ri) (Min)

22 mOhms

Resistance - Post Trip (R1) (Max)

54 mOhms
