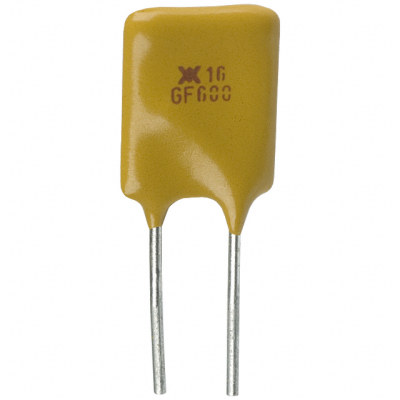

RGEF600-2

Product Parameter

Type

Polymeric

Series

PolySwitch®, RGEF

Ratings

-

Approvals

CSA, TUV, UL

Packaging

Cut Tape (CT)

Part Status

Discontinued at Digi-Key

Lead Spacing

0.199" (5.05mm)

Time to Trip

3.3s

Current - Max

100A

Mounting Type

Through Hole

Voltage - Max

16V

Package / Case

Radial, Disc

Thickness (Max)

-

Size / Dimension

0.402" L x 0.098" W (10.20mm x 2.50mm)

Current - Trip (It)

10.2A

Height - Seated (Max)

0.673" (17.10mm)

Operating Temperature

-40°C ~ 85°C

Current - Hold (Ih) (Max)

6A

Resistance - Initial (Ri) (Min)

10 mOhms

Resistance - Post Trip (R1) (Max)

28 mOhms
