Lanka Micro

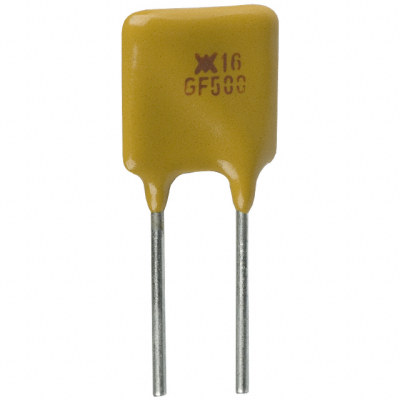

RGEF500-1
| Manufacturer: | Littelfuse Inc. |
In Stock 500 pcs
|
|
|---|---|---|---|
| Datasheet: | RGEF500-1 | ||
| Product Category: | PTC Resettable Fuses | Reference Price (In US Dollars) | 1pcs |
| Description: | PTC RESET FUSE 16V 5A RADIAL | $0.66 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Polymeric
- Series
- PolySwitch®, RGEF
- Ratings
- -
- Approvals
- CSA, TUV, UL
- Packaging
- Bulk
- Part Status
- Active
- Lead Spacing
- 0.199" (5.05mm)
- Time to Trip
- 2s
- Current - Max
- 100A
- Mounting Type
- Through Hole
- Voltage - Max
- 16V
- Package / Case
- Radial, Disc
- Thickness (Max)
- -
- Size / Dimension
- 0.390" L x 0.098" W (9.90mm x 2.50mm)
- Current - Trip (It)
- 8.5A
- Height - Seated (Max)
- 0.563" (14.30mm)
- Operating Temperature
- -40°C ~ 85°C
- Current - Hold (Ih) (Max)
- 5A
- Resistance - Initial (Ri) (Min)
- 15 mOhms
- Resistance - Post Trip (R1) (Max)
- 34 mOhms
