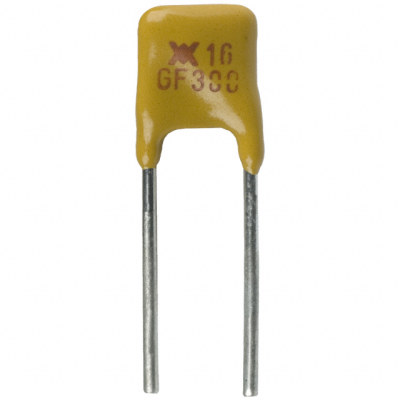

RGEF300-2

Product Parameter

Type

Polymeric

Series

PolySwitch®, RGEF

Ratings

-

Approvals

CSA, TUV, UL

Packaging

Digi-Reel®

Part Status

Active

Lead Spacing

0.199" (5.05mm)

Time to Trip

1s

Current - Max

100A

Mounting Type

Through Hole

Voltage - Max

16V

Package / Case

Radial, Disc

Thickness (Max)

-

Size / Dimension

0.260" L x 0.098" W (6.60mm x 2.50mm)

Current - Trip (It)

5.1A

Height - Seated (Max)

0.433" (11.00mm)

Operating Temperature

-40°C ~ 85°C

Current - Hold (Ih) (Max)

3A

Resistance - Initial (Ri) (Min)

38 mOhms

Resistance - Post Trip (R1) (Max)

97.5 mOhms
