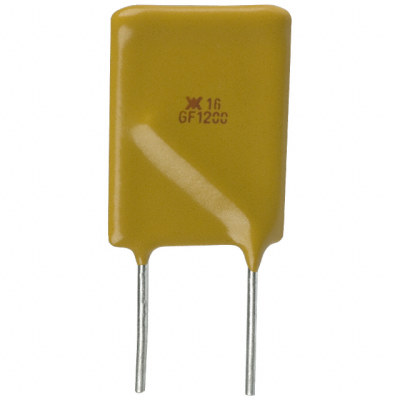

RGEF1200-2
| Manufacturer: | Littelfuse Inc. |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | RGEF1200-2 | ||
| Product Category: | PTC Resettable Fuses | Reference Price (In US Dollars) | 1pcs |
| Description: | PTC RESET FUSE 16V 12A RADIAL | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Polymeric
- Series
- PolySwitch®, RGEF
- Ratings
- -
- Approvals
- CSA, TUV, UL
- Packaging
- Tape & Reel (TR)
- Part Status
- Discontinued at Digi-Key
- Lead Spacing
- 0.400" (10.15mm)
- Time to Trip
- 7.5s
- Current - Max
- 100A
- Mounting Type
- Through Hole
- Voltage - Max
- 16V
- Package / Case
- Radial, Disc
- Thickness (Max)
- -
- Size / Dimension
- 0.670" L x 0.115" W (16.95mm x 2.90mm)
- Current - Trip (It)
- 20.4A
- Height - Seated (Max)
- 1.102" (28.00mm)
- Operating Temperature
- -40°C ~ 85°C
- Current - Hold (Ih) (Max)
- 12A
- Resistance - Initial (Ri) (Min)
- 3.3 mOhms
- Resistance - Post Trip (R1) (Max)
- 8.6 mOhms
