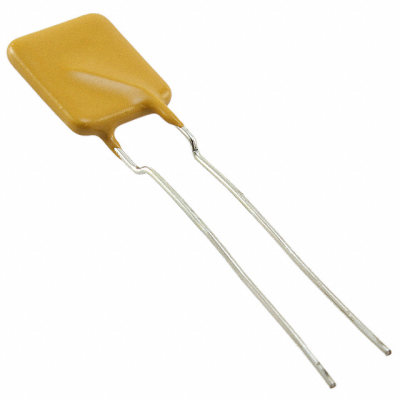

LVR033K
| Manufacturer: | Littelfuse Inc. |
In Stock 2352 pcs
|
|
|---|---|---|---|
| Datasheet: | LVR033K | ||
| Product Category: | PTC Resettable Fuses | Reference Price (In US Dollars) | 1pcs |
| Description: | PTC RESET FUSE 240V 330MA RADIAL | $0.77 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Polymeric
- Series
- PolySwitch®, LVR
- Ratings
- -
- Approvals
- CQC, CSA, TUV, UL
- Packaging
- Bulk
- Part Status
- Active
- Lead Spacing
- 0.200" (5.08mm)
- Time to Trip
- 21s
- Current - Max
- 4.5A
- Mounting Type
- Through Hole
- Voltage - Max
- 240V (265V Int)
- Package / Case
- Radial, Disc
- Thickness (Max)
- -
- Size / Dimension
- 0.449" L x 0.150" W (11.40mm x 3.80mm)
- Current - Trip (It)
- 740mA
- Height - Seated (Max)
- 0.748" (19.00mm)
- Operating Temperature
- -20°C ~ 85°C
- Current - Hold (Ih) (Max)
- 330mA
- Resistance - Initial (Ri) (Min)
- 770 mOhms
- Resistance - Post Trip (R1) (Max)
- 2.6 Ohms
