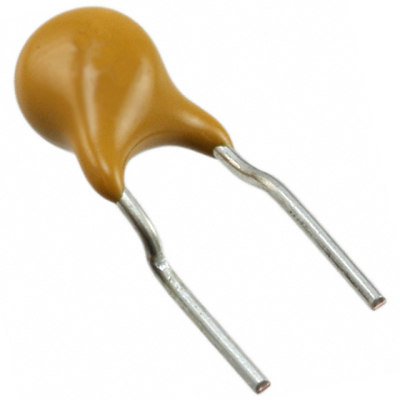

250R080DR

Product Parameter

Type

Polymeric

Series

POLY-FUSE®, 250R

Ratings

-

Approvals

cURus, TUV

Packaging

Tape & Box (TB)

Part Status

Obsolete

Lead Spacing

0.201" (5.10mm)

Time to Trip

4s

Current - Max

3A

Mounting Type

Through Hole

Voltage - Max

60V (250V Int)

Package / Case

Radial, Disc

Thickness (Max)

-

Size / Dimension

0.228" Dia x 0.181" T (5.80mm x 4.60mm)

Current - Trip (It)

160mA

Height - Seated (Max)

0.390" (9.90mm)

Operating Temperature

-40°C ~ 85°C

Current - Hold (Ih) (Max)

80mA

Resistance - Initial (Ri) (Min)

14 Ohms

Resistance - Post Trip (R1) (Max)

33 Ohms
