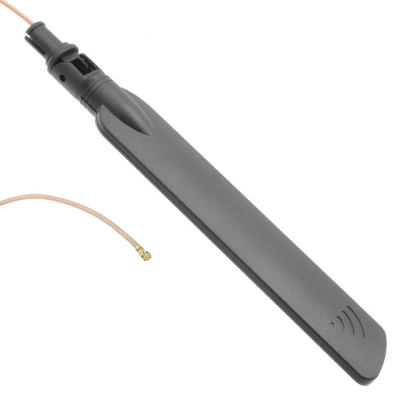

MAF94304

Product Parameter

Gain

3dBi

VSWR

2.5

Series

Heptaband™

Features

Cable - 100mm

Packaging

Bulk

Part Status

Obsolete

Power - Max

10W

Return Loss

-

Termination

U.FL (UMCC), IPEX MHF1

Antenna Type

Blade, Tilt

Applications

AWS, GPS, GSM, Wi-Fi, WLAN

Height (Max)

6.339" (161.00mm)

Mounting Type

Snap-In

Frequency Group

Wide Band

Frequency Range

815MHz ~ 960MHz, 1.427GHz ~ 1.511GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz

Number of Bands

7

Ingress Protection

-

RF Family/Standard

Cellular, Navigation, WiFi

Frequency (Center/Band)

850MHz, 900MHz, 1.47GHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz
