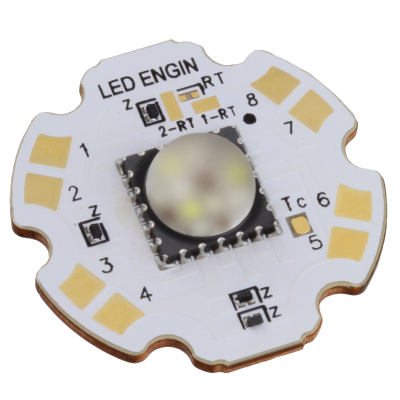

LZC-B3MD07-0000
| Manufacturer: | LED Engin Inc. |
In Stock 100 pcs
|
|
|---|---|---|---|
| Datasheet: | LZC-B3MD07-0000 | ||
| Product Category: | LED Lighting - COBs, Engines, Modules, Strips | Reference Price (In US Dollars) | 1pcs |
| Description: | LED EMITTER RGBW FROST 4X3 MCPCB | $58.49 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- LED Module
- Color
- Red, Green, Blue, White - Cool (RGBW)
- Height
- 6.80mm
- Series
- LZC
- CCT (K)
- 5500K
- Features
- -
- Lens Type
- Domed
- Packaging
- Tray
- Wavelength
- 624nm Red, 525nm Green, 457nm Blue
- Part Status
- Active
- Configuration
- Starboard
- Current - Max
- 1A Red, 1A Green, 1A Blue, 1A White
- Viewing Angle
- 95°
- Current - Test
- 700mA Red, 700mA Green, 700mA Blue, 700mA White
- Size / Dimension
- 28.00mm Dia
- Temperature - Test
- 25°C
- CRI (Color Rendering Index)
- 75
- Light Emitting Surface (LES)
- 8.20mm
- Lumens/Watt @ Current - Test
- 49 lm/W Red, 43 lm/W Green, 12 lm/W Blue, 71 lm/W White
- Voltage - Forward (Vf) (Typ)
- 7V Red, 10.5V Green, 10.5V Blue, 10.5V White
- Flux @ Current/Temperature - Test
- 240lm Red, 318lm Green, 89lm Blue, 525lm White
