LZ4-V4MDPB-0000
| Manufacturer: | LED Engin Inc. |
In Stock 658 pcs
|
|
|---|---|---|---|
| Datasheet: | LZ4-V4MDPB-0000 | ||
| Product Category: | LED Lighting - COBs, Engines, Modules, Strips | Reference Price (In US Dollars) | 1pcs |

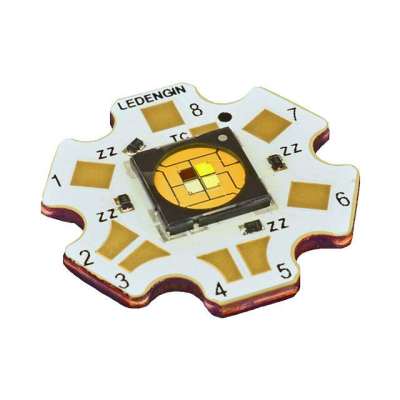

| Description: | LED MOD LUXIGEN RGBW STARBOARD | $21.98 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- LED Module
- Color
- Red, Green, Blue, White - Cool (RGBW)
- Height
- 2.66mm
- Series
- LuxiGen™ LZ4
- CCT (K)
- 6335K
- Features
- -
- Lens Type
- Flat
- Packaging
- Tray
- Wavelength
- 624nm Red, 525nm Green, 454nm Blue
- Part Status
- Active
- Configuration
- Starboard
- Current - Max
- 2.5A Red, 3A Green, 3A Blue, 3A White
- Viewing Angle
- 110°
- Current - Test
- 1A Red, 1A Green, 1A Blue, 1A White
- Size / Dimension
- 19.90mm Dia
- Temperature - Test
- 25°C
- CRI (Color Rendering Index)
- 75 (Typ)
- Light Emitting Surface (LES)
- 7.00mm L x 7.00mm W
- Lumens/Watt @ Current - Test
- 48 lm/W Red, 63 lm/W Green, 98 lm/W White
- Voltage - Forward (Vf) (Typ)
- 2.4V Red, 3.5V Green, 3V Blue, 3V White
- Flux @ Current/Temperature - Test
- 115lm Red, 220lm Green, 1250mW Blue, 293lm White
