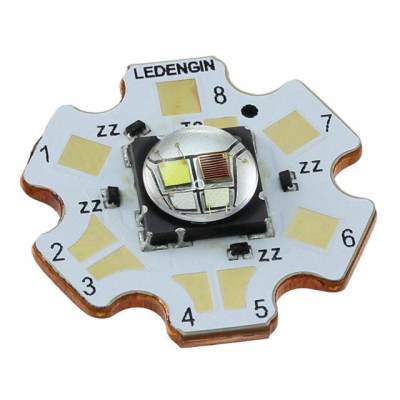

LZ4-V0MD0C-0000
| Manufacturer: | LED Engin Inc. |
In Stock 125 pcs
|
|
|---|---|---|---|
| Datasheet: | LZ4-V0MD0C-0000 | ||
| Product Category: | LED Lighting - COBs, Engines, Modules, Strips | Reference Price (In US Dollars) | 1pcs |
| Description: | LED DOME RGBW 4CH CLEAR MCPCB | $23.5 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- LED Module
- Color
- Red, Green, Blue, White - Cool
- Height
- 5.40mm
- Series
- LZ4
- CCT (K)
- 6335K
- Features
- -
- Lens Type
- Domed
- Packaging
- Tray
- Wavelength
- 624nm Red, 525nm Green, 457nm Blue
- Part Status
- Active
- Configuration
- Starboard
- Current - Max
- 1A Red, 1A Green, 1A Blue, 1A White
- Viewing Angle
- 95°
- Current - Test
- 700mA Red, 700mA Green, 700mA Blue, 700mA White
- Size / Dimension
- 19.90mm Dia
- Temperature - Test
- 25°C
- CRI (Color Rendering Index)
- 75 (Typ)
- Light Emitting Surface (LES)
- 6.50mm Dia
- Lumens/Watt @ Current - Test
- 76 lm/W Red, 63 lm/W Green, 15 lm/W Blue, 104 lm/W White
- Voltage - Forward (Vf) (Typ)
- 2.5V Red, 3.6V Green, 3.2V Blue, 3.2V White
- Flux @ Current/Temperature - Test
- 133lm Red, 160lm Green, 33lm Blue, 234lm White
