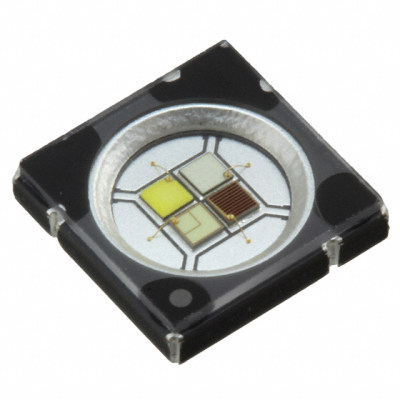

LZ4-04MDCA-0000
| Manufacturer: | LED Engin Inc. |
In Stock 167 pcs
|
|
|---|---|---|---|
| Datasheet: | LZ4-04MDCA-0000 | ||
| Product Category: | LED Lighting - Color | Reference Price (In US Dollars) | 1pcs |
| Description: | LED EMITTER RGBW FLAT LENS SMD | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Color
- Red, Green, Blue, White - Cool (RGBW)
- Series
- LuxiGen™ LZ4
- Packaging
- Digi-Reel®
- Wavelength
- 624nm Red, 525nm Green, 457nm Blue, 6500K White
- Part Status
- Active
- Current - Max
- 1.5A Red, 1.5A Green, 1.5A Blue, 1.5A White
- Mounting Type
- Surface Mount
- Viewing Angle
- 110°
- Current - Test
- 700mA Red, 700mA Green, 700mA Blue, 700mA White
- Package / Case
- 2828 (7070 Metric)
- Size / Dimension
- 0.276" L x 0.276" W (7.00mm x 7.00mm)
- Temperature - Test
- 25°C
- Height - Seated (Max)
- 0.065" (1.65mm)
- Supplier Device Package
- SMD
- Lumens/Watt @ Current - Test
- 35 lm/W Red, 53 lm/W Green, 11 lm/W Green, 82 lm/W
- Voltage - Forward (Vf) (Typ)
- 2.5V Red, 3.6V Green, 3.2V Blue, 3.2V White
- Thermal Resistance of Package
- 1.1°C/W
- Flux @ Current/Temperature - Test
- 62lm Red, 133lm Green, 24lm Blue, 183nm White
