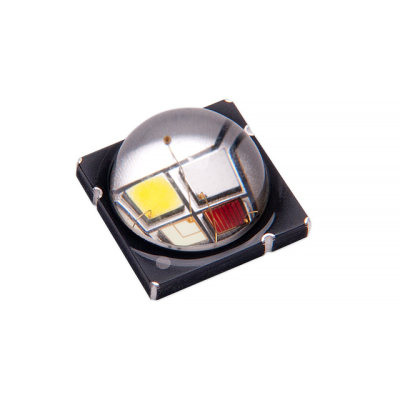

LZ4-00MD09-0000
| Manufacturer: | LED Engin Inc. |
In Stock 91 pcs
|
|
|---|---|---|---|
| Datasheet: | LZ4-00MD09-0000 | ||
| Product Category: | LED Lighting - Color | Reference Price (In US Dollars) | 1pcs |
| Description: | LED EMITTER RGBW DOMED LENS SMD | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Color
- Red, Green, Blue, White - Cool (RGBW)
- Series
- LZ4
- Packaging
- Digi-Reel®
- Wavelength
- 624nm Red, 525nm Green, 457nm Blue, 6100K White
- Part Status
- Active
- Current - Max
- 1A Red, 1A Green, 1A Blue, 1A White
- Mounting Type
- Surface Mount
- Viewing Angle
- 95°
- Current - Test
- 700mA Red, 700mA Green, 700mA Blue, 700mA White
- Package / Case
- 2828 (7070 Metric)
- Size / Dimension
- 0.276" L x 0.276" W (7.00mm x 7.00mm)
- Temperature - Test
- 25°C
- Height - Seated (Max)
- 0.154" (3.90mm)
- Supplier Device Package
- SMD
- Lumens/Watt @ Current - Test
- 66 lm/W Red, 63 lm/W Green, 13 lm/W Blue, 85 lm/W White
- Voltage - Forward (Vf) (Typ)
- 2.5V Red, 3.6V Green, 3.2V Blue, 3.2V White
- Thermal Resistance of Package
- 2.8°C/W
- Flux @ Current/Temperature - Test
- 115lm Red, 160lm Green, 30lm Blue, 190lm White
