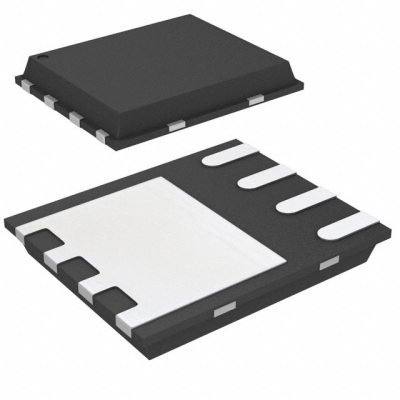

IRLHS6242TRPBF
| Manufacturer: | Infineon Technologies |
In Stock 4937 pcs
|
|
|---|---|---|---|
| Datasheet: | IRLHS6242TRPBF | ||
| Product Category: | Transistors - FETs, MOSFETs - Single | Reference Price (In US Dollars) | 1pcs |
| Description: | MOSFET N-CH 20V 10A PQFN | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- HEXFET®
- FET Type
- N-Channel
- Packaging
- Digi-Reel®
- Vgs (Max)
- ±12V
- Technology
- MOSFET (Metal Oxide)
- FET Feature
- -
- Part Status
- Active
- Mounting Type
- Surface Mount
- Package / Case
- 6-PowerVDFN
- Vgs(th) (Max) @ Id
- 1.1V @ 10µA
- Operating Temperature
- -55°C ~ 150°C (TJ)
- Rds On (Max) @ Id, Vgs
- 11.7mOhm @ 8.5A, 4.5V
- Power Dissipation (Max)
- 1.98W (Ta), 9.6W (Tc)
- Supplier Device Package
- 6-PQFN (2x2)
- Gate Charge (Qg) (Max) @ Vgs
- 14nC @ 4.5V
- Drain to Source Voltage (Vdss)
- 20V
- Input Capacitance (Ciss) (Max) @ Vds
- 1110pF @ 10V
- Current - Continuous Drain (Id) @ 25°C
- 10A (Ta), 12A (Tc)
- Drive Voltage (Max Rds On, Min Rds On)
- 2.5V, 4.5V
