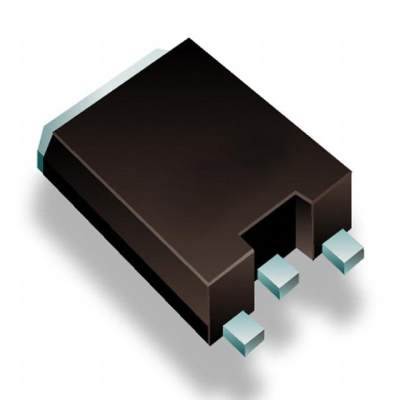

IRLBL1304

Product Parameter

Series

HEXFET®

FET Type

N-Channel

Packaging

Tube

Vgs (Max)

±16V

Technology

MOSFET (Metal Oxide)

FET Feature

-

Part Status

Obsolete

Mounting Type

Surface Mount

Package / Case

Super D2-Pak

Vgs(th) (Max) @ Id

1V @ 250µA

Rds On (Max) @ Id, Vgs

4.5mOhm @ 110A, 10V

Power Dissipation (Max)

300W (Tc)

Supplier Device Package

SUPER D2-PAK

Gate Charge (Qg) (Max) @ Vgs

140nC @ 4.5V

Drain to Source Voltage (Vdss)

40V

Input Capacitance (Ciss) (Max) @ Vds

7660pF @ 25V

Current - Continuous Drain (Id) @ 25°C

185A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

4.5V, 10V
