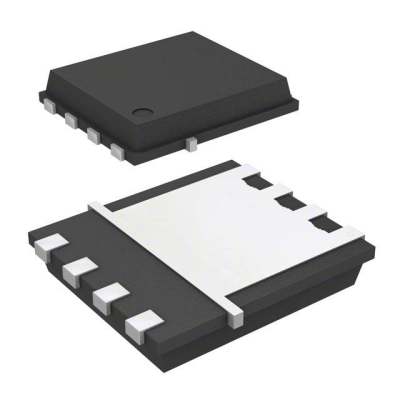

BSC130P03LSGAUMA1
| Manufacturer: | Infineon Technologies |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | BSC130P03LSGAUMA1 | ||
| Product Category: | Transistors - FETs, MOSFETs - Single | Reference Price (In US Dollars) | 1pcs |
| Description: | MOSFET P-CH 30V 22.5A TDSON-8 | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- OptiMOS™
- FET Type
- P-Channel
- Packaging
- Digi-Reel®
- Vgs (Max)
- ±25V
- Technology
- MOSFET (Metal Oxide)
- FET Feature
- -
- Part Status
- Discontinued at Digi-Key
- Mounting Type
- Surface Mount
- Package / Case
- 8-PowerVDFN
- Vgs(th) (Max) @ Id
- 2.2V @ 150µA
- Operating Temperature
- -55°C ~ 150°C (TJ)
- Rds On (Max) @ Id, Vgs
- 13mOhm @ 22.5A, 10V
- Power Dissipation (Max)
- 2.5W (Ta), 69W (Tc)
- Supplier Device Package
- PG-TDSON-8-3
- Gate Charge (Qg) (Max) @ Vgs
- 73.1nC @ 10V
- Drain to Source Voltage (Vdss)
- 30V
- Input Capacitance (Ciss) (Max) @ Vds
- 3670pF @ 15V
- Current - Continuous Drain (Id) @ 25°C
- 12A (Ta), 22.5A (Tc)
- Drive Voltage (Max Rds On, Min Rds On)
- 10V
