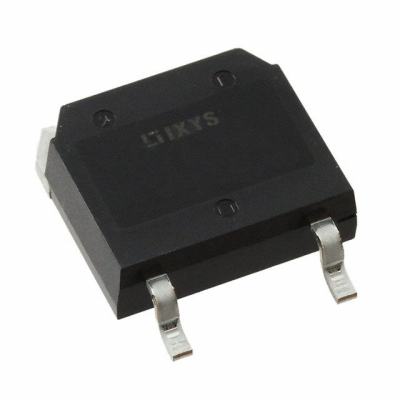

IXBT32N300HV
| Manufacturer: | IXYS |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | IXBT32N300HV | ||
| Product Category: | Transistors - IGBTs - Single | Reference Price (In US Dollars) | 1pcs |
| Description: | IGBT 3000V 80A 400W TO268 | $39.65 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- BIMOSFET™
- IGBT Type
- -
- Packaging
- Tube
- Input Type
- Standard
- Gate Charge
- 142nC
- Part Status
- Active
- Power - Max
- 400W
- Mounting Type
- Surface Mount
- Package / Case
- TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
- Test Condition
- 1250V, 32A, 2Ohm, 15V
- Switching Energy
- -
- Td (on/off) @ 25°C
- 50ns/160ns
- Operating Temperature
- -55°C ~ 150°C (TJ)
- Supplier Device Package
- TO-268HV
- Vce(on) (Max) @ Vge, Ic
- 3.2V @ 15V, 32A
- Reverse Recovery Time (trr)
- 1500ns
- Current - Collector (Ic) (Max)
- 80A
- Current - Collector Pulsed (Icm)
- 280A
- Voltage - Collector Emitter Breakdown (Max)
- 3000V
