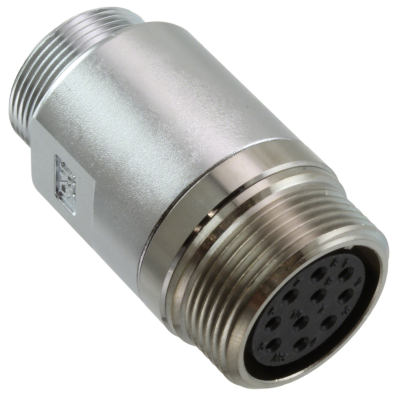

RM15WTJZ-10S(71)
| Manufacturer: | Hirose Electric Co Ltd |
In Stock 10 pcs
|
|
|---|---|---|---|
| Datasheet: | RM15WTJZ-10S(71) | ||
| Product Category: | Circular Connectors | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN JACK FMALE 10POS SOLDER CUP | $39.96 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Color
- Silver
- Series
- RM-W
- Features
- Backshell
- Packaging
- Bulk
- Shielding
- -
- Orientation
- Keyed
- Part Status
- Active
- Termination
- Solder Cup
- Applications
- -
- Shell Finish
- Chromium
- Cable Opening
- -
- Mounting Type
- Free Hanging (In-Line)
- Connector Type
- Jack, Female Sockets
- Fastening Type
- Threaded
- Shell Material
- Brass
- Voltage Rating
- 350VAC, 490VDC
- Insert Material
- Diallyl Phthalate (DAP)
- Shell Size, MIL
- -
- Contact Material
- Copper Alloy
- Mounting Feature
- -
- Ingress Protection
- IP67/68 - Dust Tight, Waterproof
- Number of Positions
- 10
- Shell Size - Insert
- 15
- Current Rating (Amps)
- 5A
- Operating Temperature
- -25°C ~ 85°C
- Contact Finish - Mating
- Silver
- Backshell Material, Plating
- Zinc Alloy, Chromium
- Material Flammability Rating
- UL94 V-0
- Contact Finish Thickness - Mating
- 196.9µin (5.00µm)
