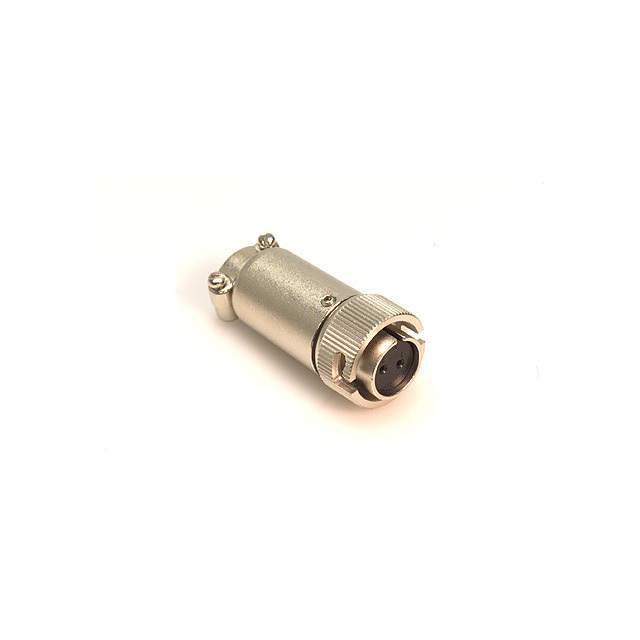

RM12BPE-2S(71)
| Manufacturer: | Hirose Electric Co Ltd |
In Stock 447 pcs
|
|
|---|---|---|---|
| Datasheet: | RM12BPE-2S(71) | ||
| Product Category: | Circular Connectors | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN PLUG FMALE 2POS SOLDER | $13.79 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Color
- Silver
- Series
- RM
- Features
- Backshell, Cable Clamp, Coupling Nut
- Packaging
- Bulk
- Shielding
- -
- Orientation
- Keyed
- Part Status
- Active
- Termination
- Solder Cup
- Applications
- -
- Shell Finish
- Nickel
- Cable Opening
- 0.197" ~ 0.315" (5.00mm ~ 8.00mm)
- Mounting Type
- Free Hanging (In-Line)
- Connector Type
- Plug, Female Sockets
- Fastening Type
- Bayonet Lock
- Shell Material
- Zinc Alloy
- Voltage Rating
- 600VAC, 840VDC
- Insert Material
- Diallyl Phthalate (DAP)
- Shell Size, MIL
- -
- Contact Material
- Copper Alloy
- Mounting Feature
- -
- Ingress Protection
- -
- Number of Positions
- 2
- Shell Size - Insert
- 12
- Current Rating (Amps)
- 5A
- Operating Temperature
- -25°C ~ 85°C
- Contact Finish - Mating
- Silver
- Backshell Material, Plating
- Zinc Alloy, Nickel
- Material Flammability Rating
- UL94 V-0
- Contact Finish Thickness - Mating
- 196.9µin (5.00µm)
