Lanka Micro

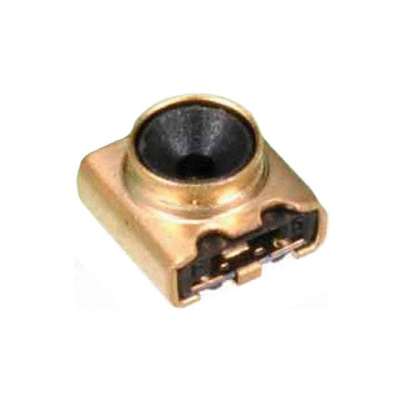

MS-156HF(20)
| Manufacturer: | Hirose Electric Co Ltd |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | MS-156HF(20) | ||
| Product Category: | Coaxial Connectors (RF) | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN COAX SWITCH RCPT STR 50OHM | $0.44 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- MS-156HF
- Features
- Internal Switch
- Includes
- -
- Impedance
- 50Ohm
- Packaging
- Tape & Reel (TR)
- Body Finish
- Gold
- Cable Group
- -
- Part Status
- Active
- Body Material
- Phosphor Bronze
- Housing Color
- Gold
- Mating Cycles
- 100
- Mounting Type
- Surface Mount
- Connector Type
- Receptacle, Female Socket
- Fastening Type
- Snap-On
- Insertion Loss
- 0.15dB
- Connector Style
- Coaxial Switch - 4mm Plug Dia
- Frequency - Max
- 6GHz
- Number of Ports
- 1
- Mounting Feature
- -
- Ingress Protection
- -
- Shield Termination
- Solder
- Contact Termination
- Solder
- Dielectric Material
- Polyamide (PA), Nylon 6T
- Operating Temperature
- -40°C ~ 85°C
- Center Contact Plating
- Gold
- Center Contact Material
- Beryllium Copper
