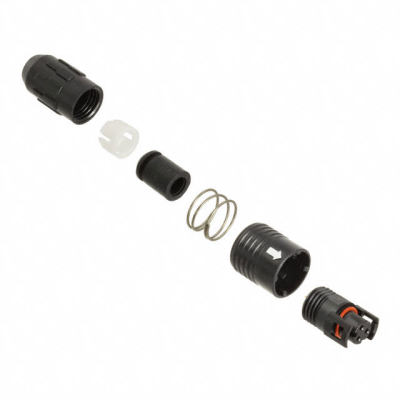

HR30-6PA-3S(71)
| Manufacturer: | Hirose Electric Co Ltd |
In Stock 227 pcs
|
|
|---|---|---|---|
| Datasheet: | HR30-6PA-3S(71) | ||
| Product Category: | Circular Connectors | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN PLUG FMALE 3POS SOLDER CUP | $11.29 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Color
- Black
- Series
- HR30
- Features
- Backshell, Strain Relief
- Packaging
- Tray
- Shielding
- -
- Orientation
- Keyed
- Part Status
- Active
- Termination
- Solder Cup
- Applications
- Industrial, Marine, Medical
- Shell Finish
- -
- Cable Opening
- 0.138" ~ 0.169" (3.50mm ~ 4.30mm)
- Mounting Type
- Free Hanging (In-Line)
- Connector Type
- Plug, Female Sockets
- Fastening Type
- Push-Pull
- Shell Material
- Polybutylene Terephthalate (PBT)
- Voltage Rating
- 100VAC, 140VDC
- Insert Material
- Polyphenylene Sulfide (PPS)
- Shell Size, MIL
- -
- Contact Material
- Phosphor Bronze
- Mounting Feature
- -
- Ingress Protection
- IP67/68 - Dust Tight, Waterproof
- Number of Positions
- 3 (Power)
- Shell Size - Insert
- 6
- Current Rating (Amps)
- 5A
- Operating Temperature
- -25°C ~ 85°C
- Contact Finish - Mating
- Gold
- Backshell Material, Plating
- Polybutylene Terephthalate (PBT)
- Material Flammability Rating
- UL94 V-0
- Contact Finish Thickness - Mating
- 8.00µin (0.203µm)
