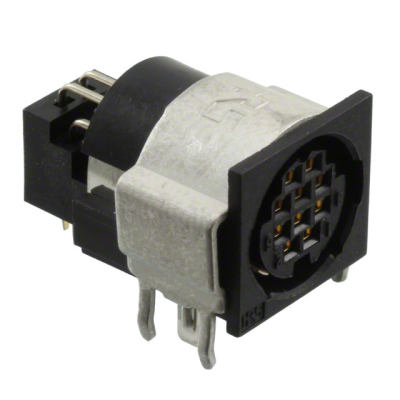

HR12-10RD-10SDL(71)
| Manufacturer: | Hirose Electric Co Ltd |
In Stock 40 pcs
|
|
|---|---|---|---|
| Datasheet: | HR12-10RD-10SDL(71) | ||
| Product Category: | Circular Connectors | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN RCPT FMALE 10POS GOLD SLDR | $8.95 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Color
- Black
- Series
- HR12
- Features
- Board Lock, Ground
- Packaging
- Tray
- Shielding
- Shielded
- Orientation
- Keyed
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Shell Finish
- -
- Cable Opening
- -
- Mounting Type
- Through Hole, Right Angle
- Connector Type
- Receptacle, Female Sockets
- Fastening Type
- Snap-In
- Shell Material
- Polybutylene Terephthalate (PBT)
- Voltage Rating
- 100VAC, 140VDC
- Insert Material
- -
- Shell Size, MIL
- -
- Contact Material
- Phosphor Bronze
- Mounting Feature
- Flange
- Ingress Protection
- -
- Number of Positions
- 10
- Shell Size - Insert
- 10
- Current Rating (Amps)
- -
- Operating Temperature
- -15°C ~ 60°C
- Contact Finish - Mating
- Gold
- Backshell Material, Plating
- -
- Material Flammability Rating
- UL94 V-0
- Contact Finish Thickness - Mating
- 8.00µin (0.203µm)
