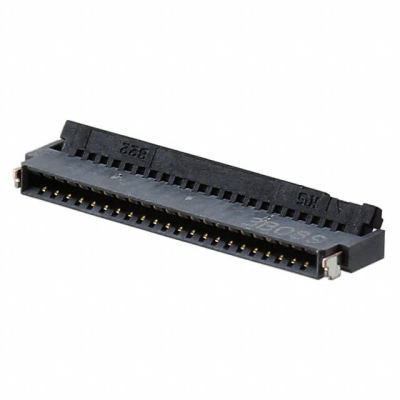

FH34SR-22S-0.5SH(50)
| Manufacturer: | Hirose Electric Co Ltd |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | FH34SR-22S-0.5SH(50) | ||
| Product Category: | FFC, FPC (Flat Flexible) Connectors | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN FFC BOTTOM 22POS 0.50MM R/A | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Pitch
- 0.020" (0.50mm)
- Series
- FH34SR
- Features
- Zero Insertion Force (ZIF)
- Packaging
- Digi-Reel®
- Part Status
- Discontinued at Digi-Key
- Termination
- Solder
- Housing Color
- Gray
- Mating Cycles
- 20
- Mounting Type
- Surface Mount, Right Angle
- Actuator Color
- Black
- Cable End Type
- Tapered
- Contact Finish
- Gold
- Flat Flex Type
- FFC, FPC
- Voltage Rating
- 50V
- Locking Feature
- Rotary Lock, Backlock
- Contact Material
- Phosphor Bronze
- Actuator Material
- Polyamide (PA), Nylon
- FFC, FCB Thickness
- 0.30mm
- Height Above Board
- 0.039" (1.00mm)
- Dielectric Material
- Liquid Crystal Polymer (LCP)
- Number of Positions
- 22
- Current Rating (Amps)
- 0.5A
- Operating Temperature
- -55°C ~ 85°C
- Connector/Contact Type
- Contacts, Bottom
- Contact Finish Thickness
- -
- Material Flammability Rating
- UL94 V-0
