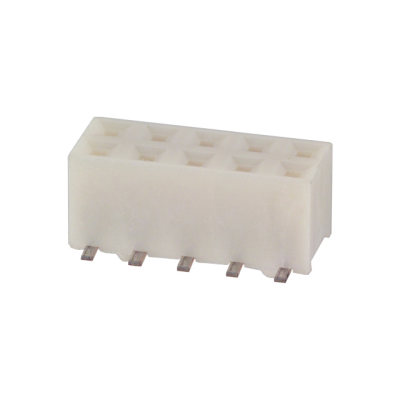

A3A-24DA-2SV(71)
| Manufacturer: | Hirose Electric Co Ltd |
In Stock 24 pcs
|
|
|---|---|---|---|
| Datasheet: | A3A-24DA-2SV(71) | ||
| Product Category: | Rectangular Connectors - Headers, Receptacles, Female Sockets | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN RCPT 24POS 0.079 GOLD SMD | $2.03 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Style
- Board to Board or Cable
- Series
- A3
- Features
- Board Guide
- Packaging
- Tube
- Part Status
- Active
- Termination
- Solder
- Applications
- General Purpose, Telecommunications
- Contact Type
- Female Socket
- Contact Shape
- Square
- Mounting Type
- Surface Mount
- Connector Type
- Receptacle
- Fastening Type
- Push-Pull
- Number of Rows
- 2
- Pitch - Mating
- 0.079" (2.00mm)
- Voltage Rating
- 200VAC
- Contact Material
- Phosphor Bronze
- Insulation Color
- Brown
- Insulation Height
- 0.165" (4.20mm)
- Ingress Protection
- -
- Insulation Material
- Polyphenylene Sulfide (PPS)
- Number of Positions
- 24
- Row Spacing - Mating
- 0.079" (2.00mm)
- Contact Finish - Post
- Tin
- Contact Length - Post
- -
- Current Rating (Amps)
- 1A
- Operating Temperature
- -55°C ~ 85°C
- Mated Stacking Heights
- 5.1mm, 6mm
- Contact Finish - Mating
- Gold
- Number of Positions Loaded
- All
- Material Flammability Rating
- UL94 V-0
- Contact Finish Thickness - Post
- 39.4µin (1.00µm)
- Contact Finish Thickness - Mating
- 8.00µin (0.203µm)
