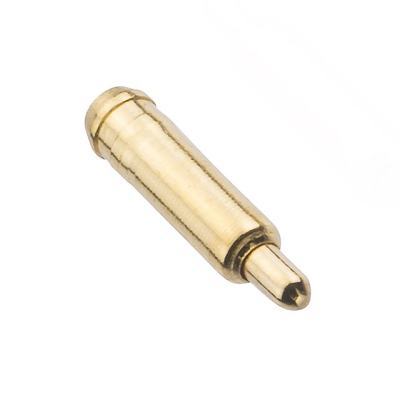

P70-5100045
| Manufacturer: | Harwin Inc. |
In Stock 570 pcs
|
|
|---|---|---|---|
| Datasheet: | P70-5100045 | ||
| Product Category: | Contacts, Spring Loaded and Pressure | Reference Price (In US Dollars) | 1pcs |
| Description: | CONTACT SPRING LOADED SMD GOLD | $0.79 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- -
- Features
- -
- Packaging
- Bulk
- Part Status
- Active
- Contact Type
- Sleeve & Plunger
- Plunger Size
- 0.024" (0.60mm) Dia
- Mating Cycles
- 10000
- Mounting Type
- Surface Mount
- Contact Finish
- Gold
- Contact Material
- Brass
- Pad Layout Dimension
- Circular - 0.047" (1.20mm)
- Current Rating (Amps)
- 2A
- Operating Temperature
- -40°C ~ 85°C
- Maximum Working Height
- 0.165" (4.20mm)
- Minimum Working Height
- 0.152" (3.85mm)
- Contact Finish Thickness
- 16.0µin (0.41µm)
- Operating Force - Initial
- -
- Recommended Working Height
- 0.157" (4.00mm)
- Material Flammability Rating
- -
- Operating Force - Mid Compression
- 99.32gf
