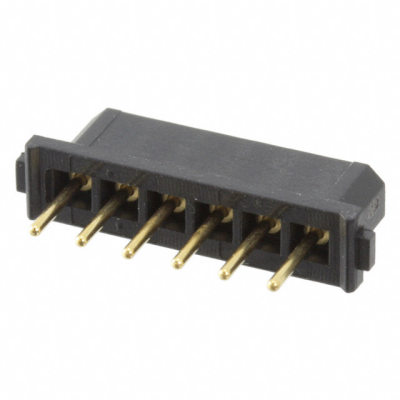

M80-8400645
| Manufacturer: | Harwin Inc. |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | M80-8400645 | ||
| Product Category: | Rectangular Connectors - Headers, Receptacles, Female Sockets | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN RCPT 6POS 0.079 GOLD PCB | $3.92 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Style
- Board to Board or Cable
- Series
- Datamate L-Tek
- Features
- -
- Packaging
- Tube
- Part Status
- Active
- Termination
- Solder
- Applications
- Automotive, General Purpose, Military
- Contact Type
- Female Socket
- Contact Shape
- Circular
- Mounting Type
- Through Hole
- Connector Type
- Receptacle
- Fastening Type
- Locking Ramp
- Number of Rows
- 1
- Pitch - Mating
- 0.079" (2.00mm)
- Voltage Rating
- 800V
- Contact Material
- Beryllium Copper
- Insulation Color
- Black
- Insulation Height
- 0.202" (5.14mm)
- Ingress Protection
- -
- Insulation Material
- Polyamide (PA46), Nylon 4/6, Glass Filled
- Number of Positions
- 6
- Row Spacing - Mating
- -
- Contact Finish - Post
- Gold
- Contact Length - Post
- 0.126" (3.20mm)
- Current Rating (Amps)
- -
- Operating Temperature
- -55°C ~ 125°C
- Mated Stacking Heights
- 7.23mm, 7.83mm
- Contact Finish - Mating
- Gold
- Number of Positions Loaded
- All
- Material Flammability Rating
- UL94 V-0
- Contact Finish Thickness - Post
- 10.0µin (0.25µm)
- Contact Finish Thickness - Mating
- 12.0µin (0.30µm)
