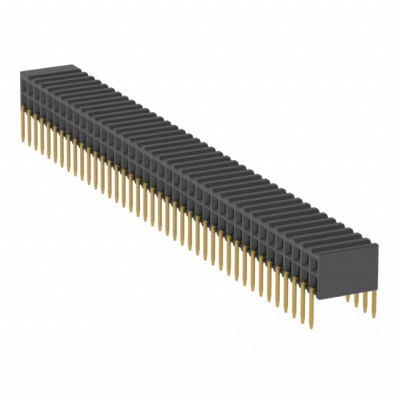

M50-3204045
| Manufacturer: | Harwin Inc. |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | M50-3204045 | ||
| Product Category: | Rectangular Connectors - Headers, Receptacles, Female Sockets | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN RCPT 80P 0.05 GOLD PCB R/A | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Style
- Board to Board or Cable
- Series
- Archer M50
- Features
- -
- Packaging
- Tube
- Part Status
- Obsolete
- Termination
- Solder
- Applications
- General Purpose, Medical, Telecommunications
- Contact Type
- Female Socket
- Contact Shape
- Square
- Mounting Type
- Through Hole, Right Angle
- Connector Type
- Receptacle
- Fastening Type
- Push-Pull
- Number of Rows
- 2
- Pitch - Mating
- 0.050" (1.27mm)
- Voltage Rating
- -
- Contact Material
- Phosphor Bronze
- Insulation Color
- Black
- Insulation Height
- 0.136" (3.46mm)
- Ingress Protection
- -
- Insulation Material
- Polyamide (PA9T), Nylon 9T
- Number of Positions
- 80
- Row Spacing - Mating
- 0.050" (1.27mm)
- Contact Finish - Post
- Gold
- Contact Length - Post
- 0.094" (2.40mm)
- Current Rating (Amps)
- 1A
- Operating Temperature
- -40°C ~ 105°C
- Mated Stacking Heights
- -
- Contact Finish - Mating
- Gold
- Number of Positions Loaded
- All
- Material Flammability Rating
- UL94 V-0
- Contact Finish Thickness - Post
- 10.0µin (0.25µm)
- Contact Finish Thickness - Mating
- 10.0µin (0.25µm)
