Lanka Micro
M20-7823642
| Manufacturer: | Harwin Inc. |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | M20-7823642 | ||
| Product Category: | Rectangular Connectors - Headers, Receptacles, Female Sockets | Reference Price (In US Dollars) | 1pcs |

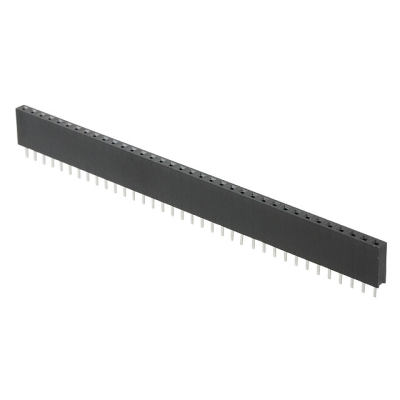

| Description: | CONN RCPT 36POS 0.1 GOLD PCB | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Style
- Board to Board or Cable
- Series
- M20
- Features
- -
- Packaging
- Tube
- Part Status
- Obsolete
- Termination
- Solder
- Applications
- General Purpose, Industrial, Telecommunications
- Contact Type
- Female Socket
- Contact Shape
- Square
- Mounting Type
- Through Hole
- Connector Type
- Receptacle
- Fastening Type
- Push-Pull
- Number of Rows
- 1
- Pitch - Mating
- 0.100" (2.54mm)
- Voltage Rating
- 1000V
- Contact Material
- Phosphor Bronze
- Insulation Color
- Black
- Insulation Height
- 0.335" (8.51mm)
- Ingress Protection
- -
- Insulation Material
- Polyamide (PA6T), Nylon 6T
- Number of Positions
- 36
- Row Spacing - Mating
- -
- Contact Finish - Post
- Tin
- Contact Length - Post
- 0.118" (3.00mm)
- Current Rating (Amps)
- 3A
- Operating Temperature
- -40°C ~ 105°C
- Mated Stacking Heights
- 11.04mm, 12.63mm
- Contact Finish - Mating
- Gold
- Number of Positions Loaded
- All
- Material Flammability Rating
- UL94 V-0
- Contact Finish Thickness - Post
- -
- Contact Finish Thickness - Mating
- Flash
