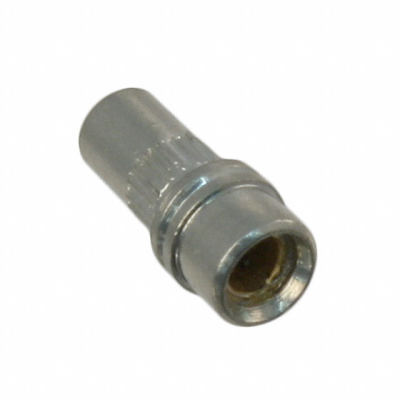

H8502-01
| Manufacturer: | Harwin Inc. |
In Stock 2447 pcs
|
|
|---|---|---|---|
| Datasheet: | H8502-01 | ||
| Product Category: | Terminals - PC Pin Receptacles, Socket Connectors | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN PIN RCPT .023-.033 KNURL | $0.45 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- -
- Features
- -
- Packaging
- Bulk
- Tail Type
- No Tail
- Part Status
- Active
- Termination
- Press-Fit, Knurled
- Socket Depth
- 0.183" (4.65mm)
- Tail Diameter
- -
- Contact Finish
- Gold
- Board Thickness
- -
- Flange Diameter
- 0.105" (2.67mm)
- Insertion Force
- 1.50N ~ 5.01N
- Contact Material
- Beryllium Copper
- Length - Overall
- 0.232" (5.89mm)
- Pin Hole Diameter
- -
- Accepts Pin Diameter
- 0.024" ~ 0.033" (0.60mm ~ 0.85mm)
- Operating Temperature
- -55°C ~ 125°C
- Mounting Hole Diameter
- 0.075" ~ 0.077" (1.91mm ~ 1.96mm)
- Accepts Square Pin Size
- -
- Contact Finish Thickness
- 5.90µin (0.150µm)
