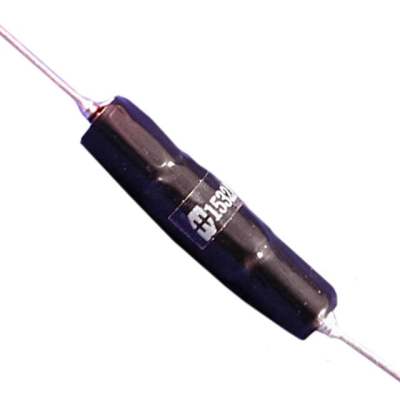

1534A

Product Parameter

Type

Wirewound

Series

1534

Ratings

-

Q @ Freq

83 @ 250kHz

Packaging

Bulk

Shielding

Unshielded

Tolerance

±5%

Inductance

1mH

Part Status

Obsolete

Mounting Type

Through Hole

Package / Case

Axial

Material - Core

-

Size / Dimension

0.469" Dia x 0.875" L (11.91mm x 22.22mm)

DC Resistance (DCR)

8.6Ohm Max

Current - Saturation

-

Current Rating (Amps)

160mA

Height - Seated (Max)

-

Operating Temperature

-

Supplier Device Package

Axial

Frequency - Self Resonant

2.6MHz

Inductance Frequency - Test

250kHz
