14310313101000
| Manufacturer: | HARTING |
In Stock 468 pcs
|
|
|---|---|---|---|
| Datasheet: | 14310313101000 | ||
| Product Category: | Terminal Blocks - Headers, Plugs and Sockets | Reference Price (In US Dollars) | 1pcs |

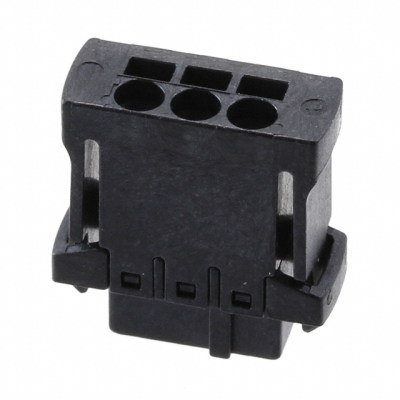

| Description: | TERM BLOCK PLUG 3POS STR 2.54MM | $1.39 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Plug, Female Sockets
- Color
- Black
- Pitch
- 0.100" (2.54mm)
- Series
- har-flexicon®
- Features
- Latch Lock
- Packaging
- Bulk
- Screw Size
- -
- Part Status
- Active
- Current - UL
- 6A
- Voltage - UL
- 160V
- Current - IEC
- -
- Mounting Type
- Free Hanging (In-Line)
- Torque - Screw
- -
- Plug Wire Entry
- 180°
- Contact Material
- Copper Alloy
- Number of Levels
- 1
- Insulation Height
- 0.193" (4.90mm)
- Termination Style
- Screwless - Spring Cage, Tension Clamp
- Wire Strip Length
- 6mm
- Header Orientation
- -
- Ingress Protection
- -
- Contact Tail Length
- -
- Dielectric Material
- Liquid Crystal Polymer (LCP), Glass Filled
- Number of Positions
- 3
- Positions Per Level
- 3
- Contact Mating Finish
- Tin
- Operating Temperature
- -40°C ~ 125°C
- Wire Gauge or Range - AWG
- 20-26 AWG
- Wire Gauge or Range - mm²
- 0.14-0.5mm²
- Material Flammability Rating
- UL94 V-0
