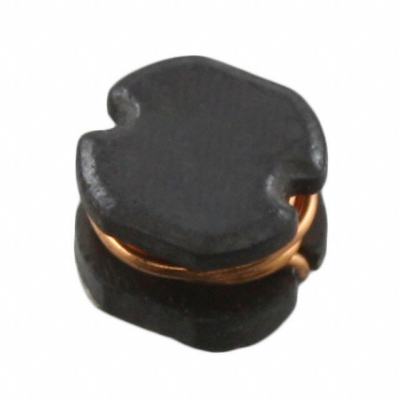

LD1-680-R

Product Parameter

Type

Wirewound

Series

LD

Ratings

-

Q @ Freq

-

Packaging

Digi-Reel®

Shielding

Unshielded

Tolerance

±20%

Inductance

68µH

Part Status

Discontinued at Digi-Key

Mounting Type

Surface Mount

Package / Case

Nonstandard

Material - Core

Ferrite

Size / Dimension

0.177" L x 0.157" W (4.50mm x 4.00mm)

DC Resistance (DCR)

1.12Ohm Max

Current - Saturation

520mA

Current Rating (Amps)

460mA

Height - Seated (Max)

0.126" (3.20mm)

Operating Temperature

-40°C ~ 125°C

Supplier Device Package

-

Frequency - Self Resonant

-

Inductance Frequency - Test

100kHz
