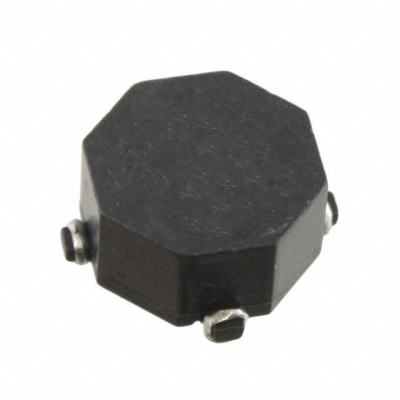

CTX15-4 — Images are for reference only. See Product Specifications for product details

CTX15-4

Manufacturer:	Eaton-Electronics Division	In Stock 0 pcs
Datasheet:	CTX15-4	In Stock 0 pcs
Product Category:	Arrays, Signal Transformers	Reference Price (In US Dollars)	1pcs
Description:	INDUCT ARRAY 2 COIL 14.16UH SMD	Reference Price (In US Dollars)	Inquiry

Fill out the below form and we will contact you as soon as possible.

Quantity

Country

Phone

Email *

Contact *

Message *

You May Also Be Interested In

no images

CTX1-1-R

no images

CTX1-1A-R

CTX1-1P-R

CTX1-2A-R

no images

CTX1-2P-R

no images

CTX1-3-R

Product Parameter

Height: 0.250" (6.35mm)
Series: OCTA-PAC®
Ratings: -
Packaging: Cut Tape (CT)
Shielding: Unshielded
Tolerance: ±20%
Part Status: Obsolete
Mounting Type: Surface Mount
Package / Case: Nonstandard
Number of Coils: 2
Size / Dimension: 0.550" L x 0.550" W (13.97mm x 13.97mm)
Operating Temperature: -40°C ~ 85°C
Current Rating - Series: 1.5A
Current Rating - Parallel: 3A
DC Resistance (DCR) - Series: 96mOhm Max
DC Resistance (DCR) - Parallel: 24mOhm Max
Inductance - Connected In Series: 56.64µH
Inductance - Connected In Parallel: 14.16µH
