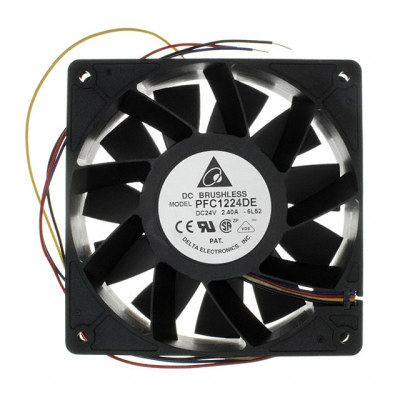

PFC1224DE-6L52
| Manufacturer: | Delta Electronics |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | PFC1224DE-6L52 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 120X38MM 24VDC WIRE | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 5500 RPM
- Noise
- 66.5 dB(A)
- Width
- 38.00mm
- Series
- PFC
- Weight
- 0.838 lb (380.11 g)
- Air Flow
- 252.8 CFM (7.08m³/min)
- Fan Type
- Tubeaxial
- Features
- PWM Control, Speed Sensor (Tach)
- Approvals
- CE, CSA, UL, VDE
- Part Status
- Obsolete
- Termination
- 4 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 48.00W
- Voltage Range
- 14 ~ 26.5VDC
- Static Pressure
- 1.412 in H2O (351.7 Pa)
- Voltage - Rated
- 24VDC
- Lifetime @ Temp.
- 50000 Hrs @ 40°C
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Square - 120mm L x 120mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 2A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
