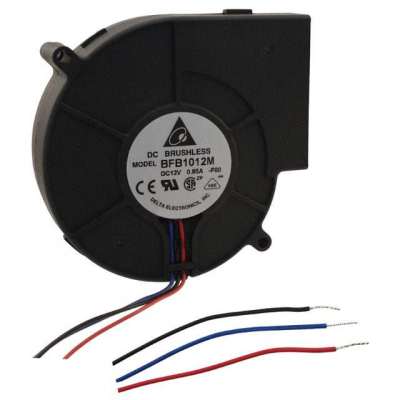

BFB1012M-F00
| Manufacturer: | Delta Electronics |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | BFB1012M-F00 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN BLOWER 97.2X33MM 12VDC WIRE | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3200 RPM
- Noise
- 49.0 dB(A)
- Width
- 33.00mm
- Series
- BFB
- Weight
- 0.353 lb (160.12 g)
- Air Flow
- 22.6 CFM (0.633m³/min)
- Fan Type
- Blower
- Features
- Locked Rotor Protection, Speed Sensor (Tach)
- Approvals
- CE, CSA, UL, VDE
- Part Status
- Obsolete
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 6.84W
- Voltage Range
- 4 ~ 13.8VDC
- Static Pressure
- 0.748 in H2O (186.3 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 50000 Hrs @ 40°C
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Rectangular/Rounded - 97.2mm L x 94.4mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.570A
- Operating Temperature
- 14 ~ 140°F (-10 ~ 60°C)
